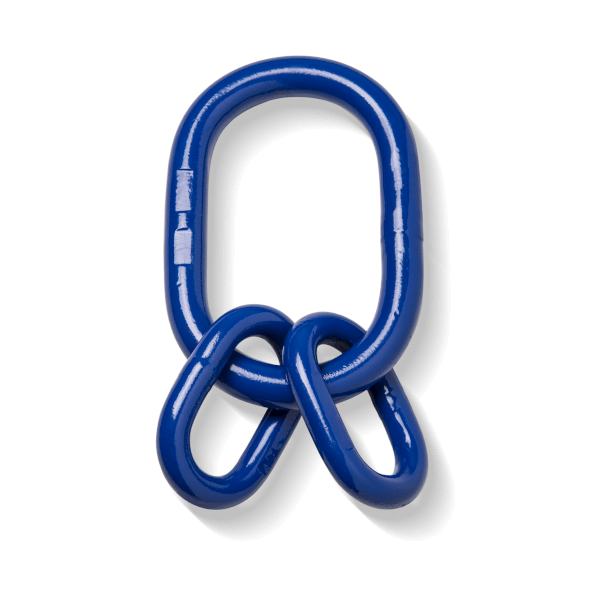

Grade 100 Series DL Multi Leg Assembly
Features
- Australian Standard: AS 3776
- Chain Size 8 -26 mm
- Designed for use in 2,3 or 4-leg assemblies, comprising a master link and two intermediate links, each with the same lifting capacity.
- Available in a blue powder coat finish for easy identification.
Specifications

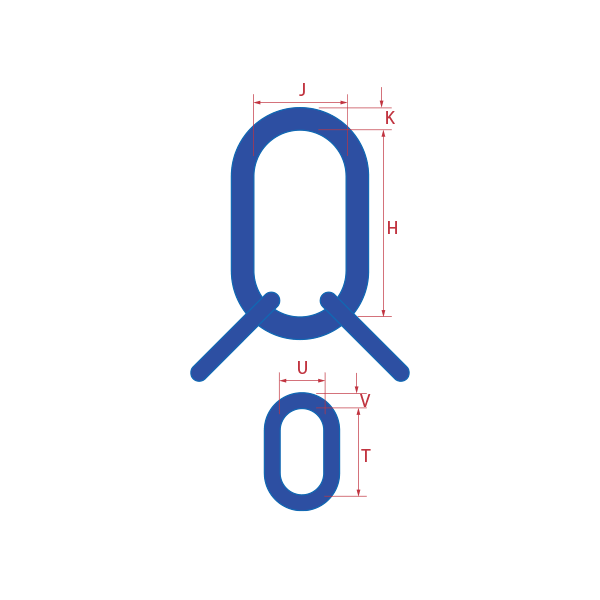

| Chain Size | WLL | H | J | K | T | U | V | N.W | Part No. | Markings |
| (mm) | (tonnes @ 60°) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 8 | 4.3 | 160 | 90 | 23 | 70 | 34 | 16 | 2.4 | 40731 | D22L16 10 |
| 10 | 6.9 | 180 | 100 | 27 | 85 | 40 | 19 | 3.8 | 40732 | D26L20 10 |
| 13 | 11.6 | 200 | 110 | 33 | 115 | 50 | 23 | 6.6 | 40733 | D32L22 10 |
| 16 | 17.3 | 275 | 150 | 38 | 140 | 65 | 27 | 11.5 | 40734 | D38L26 10 |
| 20 | 27.7 | 350 | 190 | 50 | 150 | 70 | 33 | 23 | 40735 | D50L32 10 |
| 22 | 32.9 | 350 | 250 | 56 | 170 | 75 | 36 | 31 | 40736 | D56L36 10 |
| 26 | 45.8 | 400 | 200 | 56 | 170 | 80 | 40 | 34.3 | 40737 | D60L40 10 |
Applications
Chain slings
