ERGO Webbing Lanyard

ERGO Webbing Lanyards

ERGO Fall Arrest Lanyards – Fall Arrest, energy absorbing lanyards with steel fittings













ERGO Webbing Lanyards

ERGO energy absorbing lanyards are designed to minimise the forces endured by an operator should a fall occur. All SpanSet lanyards feature back up straps should the tear web be fully deployed and all are certified to AS/NZS 1891.1. With heavy duty, alloy steel, corrosion resistant components and high tenacity polyester webbing they offer outstanding safety and value
to this range.

Specifications

Code Type Material Length Fitting at Shock Absorber Fitting at Free End(s) Weight
3051 Shock Absorber Webbing 0.45m K2 Karabiner K2 Karabiner 720g
3053 Single Leg Webbing 1.8m H1 Snap Hook H1 Snap Hook 1070g
3053 K4 Single Leg Webbing 1.8m K4 Karabiner K4 Karabiner 960g
3054 Single Leg Webbing 1.2m H1 Snap Hook H1 Snap Hook 1050g
3054 K4 Single Leg Webbing 1.2m K4 Karabiner K4 Karabiner 940g
3055 Single Leg Webbing 1.8m H1 Snap Hook H3 Scaffold Hook 1320g
3055 K4 Single Leg Webbing 1.8m K4 Karabiner H3 Scaffold Hook 1265g
3058 Twin Leg Webbing 1.8m H1 Snap Hook H3 Scaffold Hook 2035g
3058 K4 Twin Leg Webbing 1.8m K4 Karabiner K4 Karabiner 1490g
3053A Single Leg Adjustable Webbing 0.75 – 1.8 H1 Snap Hook H1 Snap Hook 1220g
3055A Single Leg Adjustable Webbing 0.75 – 1.8 H1 Snap Hook H3 Scaffold Hook 1470g
3058A Twin Leg Adjustable Webbing 0.75 – 1.8 H1 Snap Hook H3 Scaffold Hook 2335g

Features & Benefits

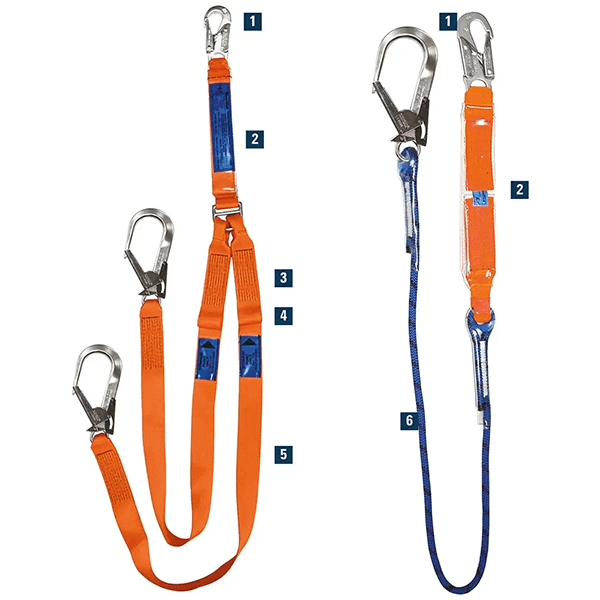

Ergo Lanyard Diagram

1. Heavy duty alloy steel fittings
Robust and lightweight, offers genuine user acceptance and confidence with corrosion resistance, high quality feel, and smooth function.

2. Tear web energy absorber
Limits the forces to under 6kN should a fall occur as per Australian/New Zealand standards.

3. High tensile contrasted stitching
The high tensile computerised sew pattern give repeatable uniformity compared to manual sew patterns. The contrasting colour makes inspection easier.

4. Stowage loops on all twin lanyards
The need for an operator to avoid connecting an unused leg of a twin lanyard is critical. To avoid this, each SpanSet twin leg lanyard has clearly marked stowage points for unused lanyard legs. They are also rated in case of misuse.

 5. Polyester webbing
High tenacity polyester webbing gives better value, strength and safety through longevity. Polyester is UV resistant and does not lose strength when it becomes wet. All this in a high visibility webbing that is soft and pliable to the touch.

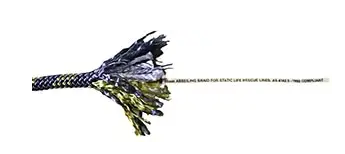

6. Kernmantle Rescue Standard Rope
11mm kernmantle rope fully complies to AS 4142.3 with full length tracer tape and contrasting sheath over a white core. This allows an objective inspection criteria by highlighting the damaged sheath against the inner core and takes the guesswork and assumptions out of the inspection process.

Kernmantle Rescue Standard Rope
