ERGO 1107 iPlus Harness

ERGO 1107 iPlus Harness is Suitable for:
Fall arrest, confined space entry, roof work, ladder systems, elevated work platforms, pole work, maintenance, construction etc

Code: 1107 ERGO iPlus

Get A quote

Call Us: 07 3205 7000

Description
Specifications
Features & Benefits
Spanset Harness Size Guide
Spanset Max User Weights

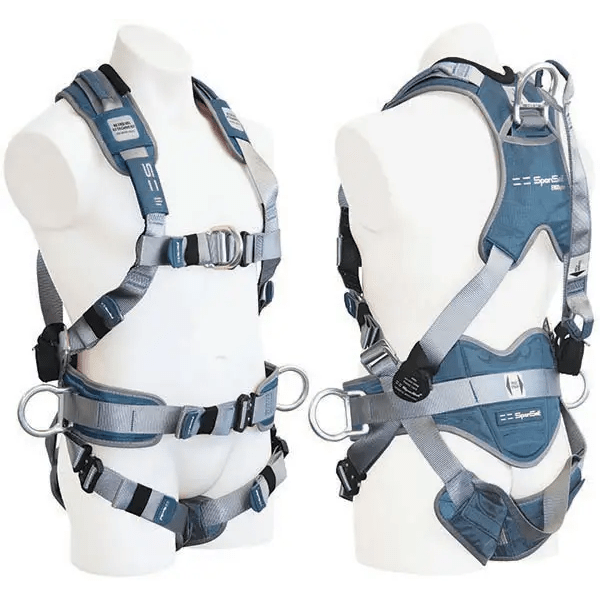

ERGO 1107 iPlus Harness

ERGO iPlus harnesses are Spansets premium range of products and showcase some of our latest technology. Starting with the revolutionary, patented iWeb™, inspection-ready webbing which gives, for the first time, an objective inspection criteria for cuts and abrasion. Additionally, after many years of research we have arrived at our premium padding offer which, in the case of our ergonomically supportive waist belts, delivers on the ventilation performance so many have promised but failed to deliver. Comfortable enough to wear all day long these reliable harnesses are certified to AS/NZS 1891.1 and supported by a NATA accredited compliance and batch testing regime.

Specifications

1107 ERGO iPlus

Designation: Full body harness

– iWeb inspection-ready webbing
– Front and rear fall arrest D rings
– Confined space attachment loops
– Rear fall arrest extension strap
– “Green light” indicator quick connect buckles
– Lightweight aluminium fittings
– Fully padded and adjustable leg and shoulder straps
– Comfortable padded neck protection
– Wrap around information label pouch
– Suspension trauma relief straps

Suitable for:
Fall arrest, confined space entry, roof work, ladder systems, elevated work platforms, pole work, maintenance, construction etc

Code: 1107 ERGO iPlus

Features & Benefits

ERGO iPlus Harnesses

1. Optimised positioning of front connection
Lower position keeps connectors out of your face in front attachment applications.2. Tighter, smaller diameter confined space loops
Lighter than shoulder Ds but small enough for efficient and safe connection of snap hooks for spreader bar insertion to confined space3. Documents pouch
Keeps compliance labels and inspection record clean and intact4. Optimised stitch patterns
Shaped and designed for optimum strength and security.5. Manufactured, designed, tested and fully certified in Australia to AS/NZS1891.1
Local SAI Global accreditation for trust and peace of mind.6. Maximised adjustment of chest strap
Additional adjustment options for small and large chests alike.7. Ergonomic pull-up shoulder strap adjustment
Allows one handed and additional adjustment.8. Adjustable chest D ring to centralise
Ability to centralise chest D ring ensures even and comfortable front loading.9. Front fall arrest D ring
Precise connection for front fall arrest applications such as climbing and ladder systems.10. Quick connect aluminium buckles
Lightweight, fast, convenient and reliable connection lead to greater worker acceptance and compliance.

11. Elastic webbing keepers
Easy storage and housekeeping of excess adjustment webbing.

12. Rubber end grips
Comfortable pull tabs for easy adjustment.13. “Green light” safe connection indicator on quick connect buckles
Gives a visual cue that the quick connect buckle is locked correctly.14. Rubber end grips
Comfortable pull tabs for easy adjustment.15. Large cranked (bent) rear fall arrest D ring
Easy to make a positive connection.16. Small D ring slider pad
Stops D ring digging into the back while minimising plastic to body contact.17. UV resistant, iWeb inspectable webbing18. Fitted with suspension trauma relief straps
Allows a suspended conscious operative to minimise the effects of suspension trauma.19. Optimised buttock strap position and lock down stitch
Minimises the potential for harness peel out in a reversed crouched position.20. Supplied in free storage bag
Keeps harness free of dirt and moisture. 5 adjustment points
Ensures correct fitting of chest, shoulder and leg straps conforming to a maximum amount of body shapes.

iWeb

I is for inspectable, and this patented webbing has been woven with a load bearing indicator core, encased by a further load bearing outer case. When inspecting for cuts or abrasion, simply look for any signs of red yarns showing through the outer silver casing and you have the discard criteria. This removes the subjective, often mood and opinion based, inspection criteria which regularly leads to the condemnation of otherwise good harnesses, another demonstration of SpanSet’s commitment to offering our end user customers value, without compromising safety. Read more.

MAV – Motion Activated Ventilation

Instead of trying to get air to flow through synthetic padding materials, we have chosen to push the air around it via a series of ventilation cells and channels as the waist padding is compressed and relaxed. We call this Motion Activated Ventilation (MAV). When the padding is compressed, the air is forced around the smaller cell veins into the larger ventilation channels and expelled through the top and bottom edges of the padding. When the padding is relaxed the opposite happens as the fresh air returns in a bellows effect. This constant mechanical exchange of air is more effective than so called wicking materials at reducing sweat and heat build-up.

Spanset Harness Size Guide

Spanset Size Guide

SpanSet’s full range of Harnesses will accommodate multiple sizes. When compared with other manufactures our Harness sizing is equivelent to a Medium, Large or Extra Large. Please see below for our minimum & maximum measurements.

Spanset Harness Size Guide

* Above is just a guide to getting the right harness for your body size. Correct fitting of the Harness must be achived to ensure it is safe for use – Refer: To our Fitting Instructions that are attached to the Harness to achieve optimal fit.
Note: If your size falls outside of these measurements there will be an additional charge for a custom made harness. Please contact our Customer Service Team for these charges.

Harness Sizes
