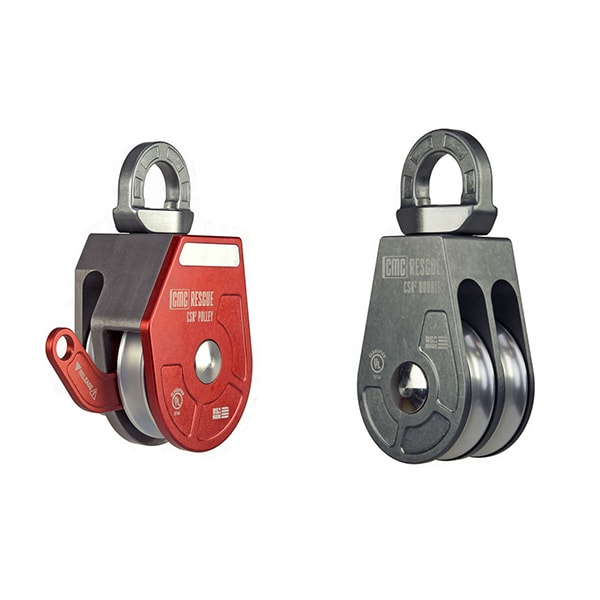

CMC Rescue CSR2 Pulleys

Features

Stronger and lighter, this all-improved swivel pulley is ideal for industrial applications as well as many rescue operations including high anchor points or tripods.

The overall length is minimised by combining the swivel with the pulley and reduces torque by aligning the pulley with the load increasing efficiency and safety. The patented locking system eliminates a toothed cam or prusik so it can be easily and safely released while under load. The side becket location allows for maximum lift height and full retraction of the system plus the removable becket cover facilitates changing out lifeline with sewn terminations. Its larger size allows for the easy application of rescue-size carabiners.

Machined from aircraft-grade aluminium with a high-strength aluminium side plate, sealed bearings and anodised aluminium sheaves.













Specifications

CODE

MBS

WEIGHT

SHEAVE
DIA / WIDTH

COLOUR

NFPA RATING  ROPE

CMC300343

46kN

1100 g

57 mm / 13 mm

Red/Grey

General Use 11-13 mm
CMC300342 51kN 680 g 57 mm / 13 mm Grey General Use 10-13 mm
