Anchor Plates

Features

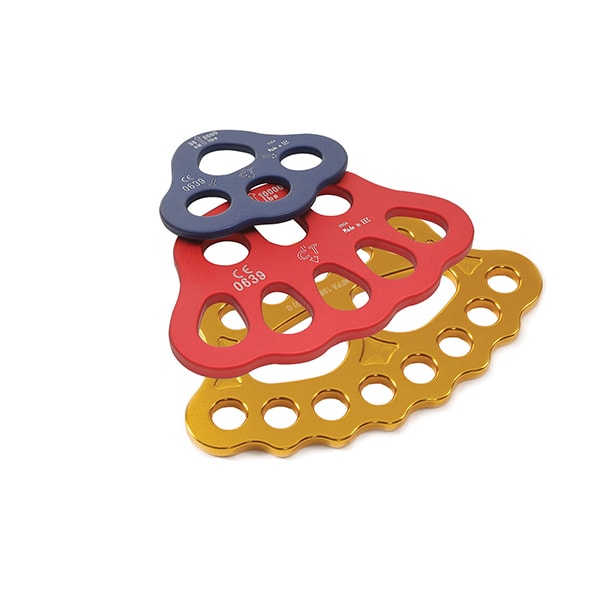

Anchor Plates allow you to create and organise your anchor systems safely. These Anchor Plates are made from high grade aluminium alloy.

Anchor Plates are available in four, eight or fifteen hole options.

Codes:

VCT L6370303 – 4 holes
VCT L6370503 – 8 holes
VISC RP320A – 15 holes

Product Enquiry

Specifications

MODEL

CODE

DIMENSIONS
LxW

WEIGHT

BREAKLOAD

HOLE
DIAMETER

4 Hole

VCT L6370303

96.5 x 83 mm

63 g

36kN

20 mm
8 Hole VCT L6370503 149 X 98 mm 136 g 45kN 20 mm
15 Hole VISC RP320A 249 x 150 mm 471 g 55kN 19 mm
