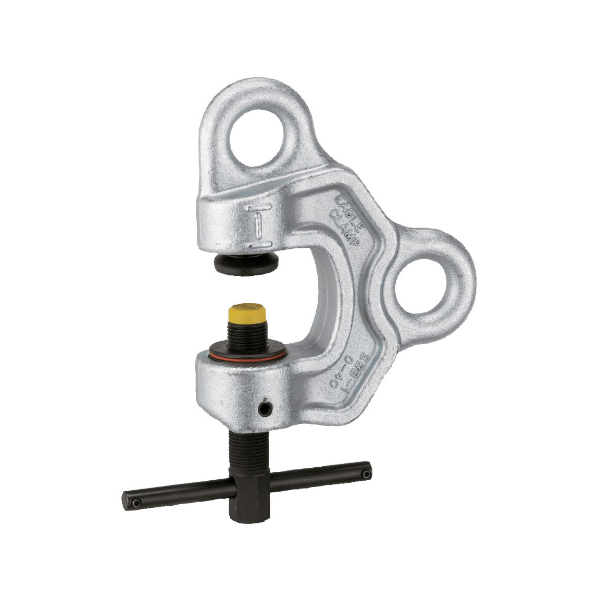

Multi Directional Lifting Clamp MODEL SBB
Features
- Patented ‘torque confirmation device’ (visible red ring indicates when tightening force is achieved).
- For horizontal and vertical lifting applications.
- Spring type pressure locking device.
- Twin shackle allows for movement in any direction.
- Double safety feature with screw type vice and automatic clamping mechanism.
- Forged special alloy steel body with galvanised finish.
- Clamp screw and swivel jaw made of induction hardened, alloy steel.
- Tightening force must be minimum of 150kgf-cm.
- Attachment and detachment are easily performed with the patented spring collar.
- Manufactured in Japan.
Specifications
Part No. | Model | WLL (tonnes) |
Hardness Range |
Effective Thickness (mm) |
Weight (kg) |
44925 | SBB-05 | 0.5 | Hv 85-320 | 1-25 | 1.8 |
44926 | SBB-1 | 1.0 | Hv 85-320 | 1-40 | 4.0 |
44927 | SBB-2 | 2.0 | Hv 85-320 | 1-40 | 7.6 |
43497 | SBB-3 | 3.0 | Hv 85-320 | 5-35 | 8.3 |
43496 | SBB-5 | 5.0 | Hv 85-320 | 10-40 | 14.3 |
Applications
- Lifting
- Moving of steel plates.
