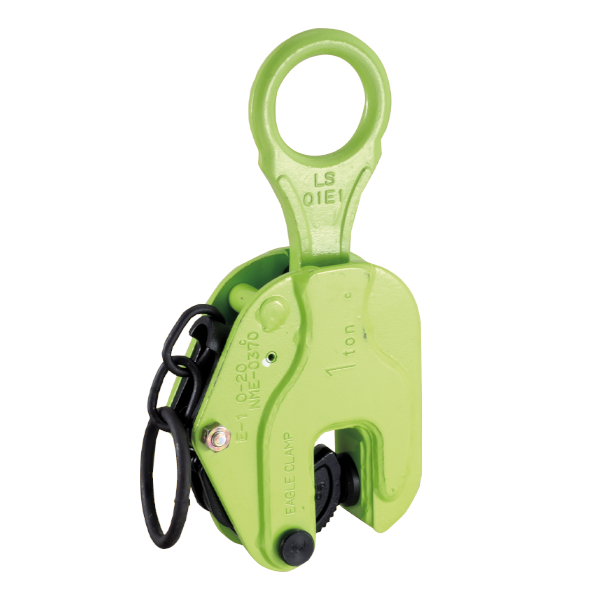

Vertical Plate Clamp – Model E


  • Dependable latch type safety lock (spring type clamping mechanism).
  • Automatic powerful clamping mechanism, clamps securely in proportion to the weight of the load. Clamps with a force of more than twice the lifting load, yet leaves the material free from unnecessary scars.
  • Induction hardened, special alloy steel cam.
  • Main body made of high-tensile steel with a welded construction, resistant to cracks.
  • Round swivel jaw to grip steel materials securely.
  • Easy to handle, large sized lifting shackle.
  • Baked epoxy finish.
  • Crack resistant, welded construction.
  • Lightweight, easy to use, safety lock latch.
  • Manufactured in Japan.
Product Enquiry


Part No. Model WLL
Thickness (mm)
43283 E-1t 1.0 Hv 85-320 3-20 3.6
43284 E-1t 1.0 Hv 85-320 3-30 4.3
43286 E-2t 2.0 Hv 85-320 3-30 5.7
43287 E-3t 3.0 Hv 85-320 3-35 9.0
43290 E-5t 5.0 Hv 85-320 5-45 16.7


  • Lifting, transporting, turning, rotating, welding, assembling, erecting, loading, pressing and bending.
  • Loading materials: steel plates, shaped-steel, flat steel, steel joists, iron-frames, iron sheet-piles, steel structures, steel frames, casted products, crane girders, crane beams, pipes.
