Trolley Wheel

Features

  • Single flanged plain trolley wheels are designed from 250kg to 10 tonne capacities (over 4 wheels).
  • Each wheel has a machine cut tread for smooth running on rolled steel joists, universal columns or universal beams.
  • Supplied in high quality cast iron, these trolley wheels are complete with bearings, knurled axle, nut, dust cover and circlip.
Product Enquiry

Specifications

Capacity
(on 4 wheels)

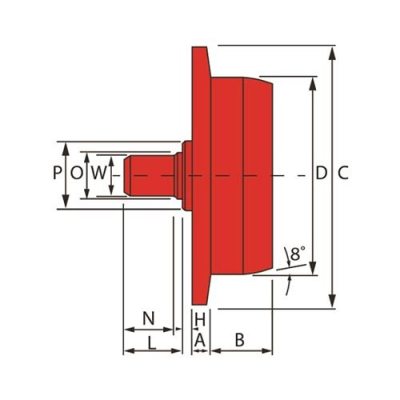

Part No.    D (mm) A (mm) B (mm) C (mm) W (mm)
Thread
H (mm) L (mm) N (mm) P (mm) O (mm)
250kg*494764851460M121.517142212
500kg494775882782M20327223020
1 tonne4947888827116M20327223020
2 tonne49479100832133M24333253324
3 tonne49480130837159M30340303630
5 tonne494811551043190M36349354536
10 tonne*494821951248232M422161437542

Applications

Engineering
