Eye Bolts Grade 4 Ìmperial
Features
- 6:1 Safety Factor
- Manufactured using only heat certified Australian Steel
Available on Request:
- Special Thread forms
- Hot Dip Galvanizing, Zinc Passivating, Zinc Plating, Chrome Plating, Powder Coating
- Testing and Certification

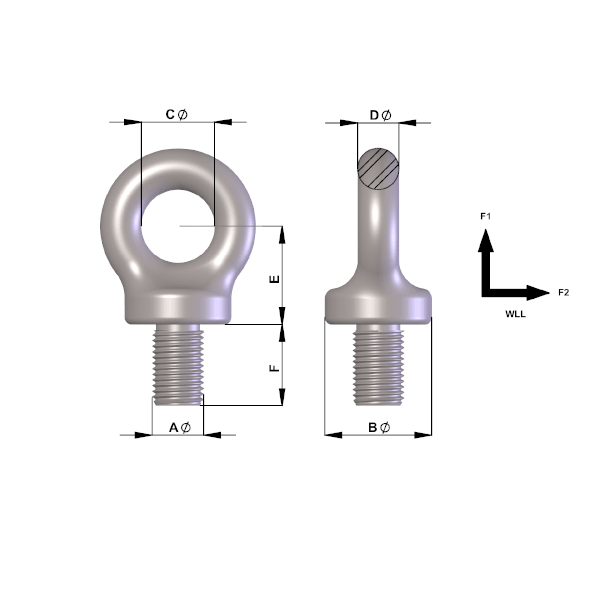

Specifications
| Type | WLL (t) Transverse | WLL (t) Axial | Size (A) | Thread Pitch | B | C | D | E | F | Weight (kg) |
| F2 (stamped) | F1 | |||||||||
| Imperial BSW | N/A | N/A | 1/4″ | 20 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial BSW | N/A | N/A | 5/16″ | 18 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial BSW | 0.06 | 0.25 | 3/8″ | 16 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial BSW | 0.06 | 0.25 | 7/16″ | 14 | 28 | 19 | 11 | 24 | 23 | 0.12 |
| Imperial BSW | 0.1 | 0.4 | 1/2″ | 13 | 28 | 19 | 11 | 24 | 23 | 0.15 |
| Imperial BSW | 0.1 | 0.4 | 9/16″ | 12 | 35 | 24 | 15 | 31 | 30 | 0.24 |
| Imperial BSW | 0.2 | 0.8 | 5/8″ | 11 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial BSW | 0.4 | 1.6 | 3/4″ | 10 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial BSW | 0.5 | 2 | 7/8″ | 9 | 50 | 33 | 20 | 41 | 41 | 0.85 |
| Imperial BSW | 0.62 | 2.5 | 1″ | 8 | 57 | 38 | 22 | 48 | 46 | 0.85 |
| Imperial BSW | 1 | 4 | 1 1/8″ | 7 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial BSW | 1.25 | 5 | 1 1/4″ | 7 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial BSW | 1.75 | 7 | 1 1/2″ | 6 | 86 | 53 | 33 | 73 | 66 | 3.7 |
| Imperial BSW | 2 | 8 | 1 3/4″ | 5 | 102 | 66 | 40 | 90 | 77 | 6.3 |
| Imperial BSW | 2.5 | 10 | 2″ | 4.5 | 115 | 72 | 49 | 99 | 89 | 9.5 |
| Imperial BSW | 5 | 20 | 2 1/2″ | 4 | 143 | 95 | 56 | 124 | 111 | 19.5 |
| Imperial BSW | 7.5 | 30 | 3″ | 4 | 163 | 106 | 66 | 140 | 125 | 29 |
| Imperial UNC | N/A | N/A | 1/4″ | 20 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial UNC | N/A | N/A | 5/16″ | 18 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial UNC | 0.06 | 0.25 | 3/8″ | 16 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial UNC | 0.06 | 0.25 | 7/16″ | 14 | 28 | 19 | 11 | 24 | 23 | 0.12 |
| Imperial UNC | 0.1 | 0.4 | 1/2″ | 13 | 28 | 19 | 11 | 24 | 23 | 0.15 |
| Imperial UNC | 0.1 | 0.4 | 9/16″ | 12 | 35 | 24 | 15 | 31 | 30 | 0.24 |
| Imperial UNC | 0.2 | 0.8 | 5/8″ | 11 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial UNC | 0.4 | 1.6 | 3/4″ | 10 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial UNC | 0.5 | 2 | 7/8″ | 9 | 50 | 33 | 20 | 41 | 41 | 0.85 |
| Imperial UNC | 0.62 | 2.5 | 1″ | 8 | 57 | 38 | 22 | 48 | 46 | 0.85 |
| Imperial UNC | 1 | 4 | 1 1/8″ | 7 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial UNC | 1.25 | 5 | 1 1/4″ | 7 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial UNC | 1.75 | 7 | 1 1/2″ | 6 | 86 | 55 | 33 | 73 | 66 | 3.7 |
| Imperial UNC | 2 | 8 | 1 3/4″ | 5 | 102 | 66 | 40 | 90 | 77 | 6.3 |
| Imperial UNC | 2.5 | 10 | 2″ | 4.5 | 115 | 72 | 49 | 99 | 89 | 9.5 |
| Imperial UNC | 5 | 20 | 2 1/2″ | 4 | 143 | 95 | 56 | 124 | 111 | 19.5 |
| Imperial UNC | 7.5 | 30 | 3″ | 4 | 163 | 106 | 66 | 140 | 125 | 29 |
| Imperial BSF | N/A | N/A | 1/4″ | 26 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial BSF | N/A | N/A | 5/16″ | 22 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial BSF | 0.06 | 0.25 | 3/8″ | 20 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial BSF | 0.06 | 0.25 | 7/16″ | 18 | 28 | 19 | 11 | 24 | 23 | 0.12 |
| Imperial BSF | 0.1 | 0.4 | 1/2″ | 16 | 28 | 19 | 11 | 24 | 23 | 0.15 |
| Imperial BSF | 0.2 | 0.8 | 5/8″ | 14 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial BSF | 0.4 | 1.6 | 3/4″ | 12 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial BSF | 0.5 | 2 | 7/8″ | 11 | 50 | 33 | 20 | 41 | 41 | 0.85 |
| Imperial BSF | 0.62 | 2.5 | 1″ | 10 | 57 | 38 | 22 | 48 | 46 | 0.85 |
| Imperial BSF | 1 | 4 | 1 1/8″ | 9 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial BSF | 1.25 | 5 | 1 1/4″ | 9 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial BSF | 1.75 | 7 | 1 1/2″ | 8 | 86 | 55 | 33 | 73 | 66 | 3.7 |
| Imperial UNF | N/A | N/A | 1/4″ | 28 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial UNF | N/A | N/A | 5/16″ | 24 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial UNF | 0.06 | 0.25 | 3/8″ | 24 | 21 | 14 | 9 | 19 | 18 | 0.06 |
| Imperial UNF | 0.06 | 0.25 | 7/16″ | 20 | 28 | 19 | 11 | 24 | 23 | 0.12 |
| Imperial UNF | 0.1 | 0.4 | 1/2″ | 20 | 28 | 19 | 11 | 24 | 23 | 0.15 |
| Imperial UNF | 0.2 | 0.8 | 5/8″ | 18 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial UNF | 0.4 | 1.6 | 3/4″ | 16 | 42 | 29 | 16 | 35 | 40 | 0.46 |
| Imperial UNF | 0.5 | 2 | 7/8″ | 14 | 50 | 33 | 20 | 41 | 41 | 0.85 |
| Imperial UNF | 0.62 | 2.5 | 1″ | 14 | 57 | 38 | 22 | 48 | 46 | 1.06 |
| Imperial UNF | 1.25 | 5 | 1 1/4″ | 12 | 71 | 48 | 28 | 65 | 50 | 2.2 |
| Imperial UNF | 1.75 | 7 | 1 1/2″ | 12 | 86 | 55 | 33 | 73 | 66 | 3.7 |
